3750 Sliding Door Technology Exclusively from Win-Dor

3750 Sliding Door



Win-Dor Dedicated Truck Route
* Available to Southern California and dedicated truck route customers only. (Learn More)

Win-Dor's innovative, durable and low-maintenance sliding glass door system is considered one of the best values in America. The highest quality at a fair cost.

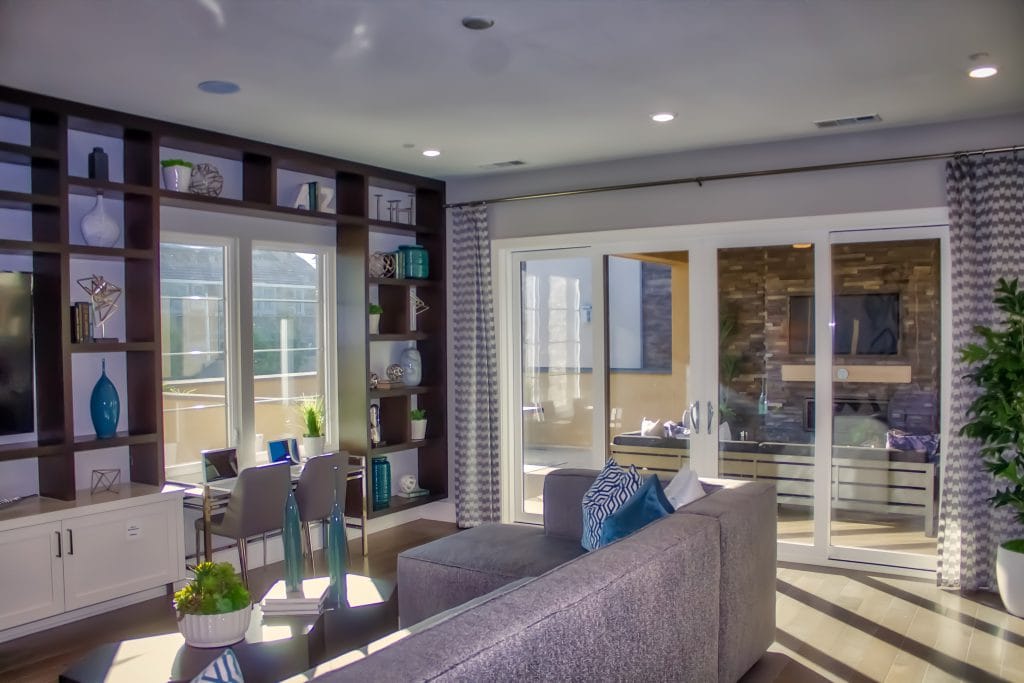

Our sliding glass doors are extremely energy efficient, very strong and structurally sound. Our unique blend of rigid aluminum framing with a long-lasting, low maintenance vinyl capping creates a unique combination not available from other manufacturers.

They offer a very clean look with a 3 3/4" x 1 3/4" sash which measures the same as our multi-slide and folding doors. This allows for consistent look when mixing and matching systems in the same home.

Our 17/8" rollers coupled with our extruded track system allows for easy operations when opening and closing.

All of these features add up to a door that clients love.

And regarding performance, you can see the Performance and Testing results located in the technical section.

All of these features add up to a door that clients love.

Innovative, Durable and Low Maintenance

Locks and Handles

Grid Options

Grid Types

Color Options

Extruded Colors
White
Beige
Standard Colors
Dk Bronze (Painted)
Black (Painted)
Terra Tone (Painted)
Semi-Custom Colors
Silver (Painted)
Beige (Painted)
Taupe (Painted)
Exterior/Interior Laminate Colors
Black (Laminate)
* This color sample is for visual use only. Actual color can vary due to change in light, surface, conditions, etc. Do not use for color matching.

** Exterior colors are painted with a special heat reflective paint designed for energy efficiency and low heat transfer. Paints are non-hazardous EPA standards and exceed all environmental and AAMA performance standards.

3750 Sliding Door Technical Documents

Shop Drawings - Standard Size

XO Patio Door

[PDF] - XO 6080
[PDF] - XO 7080
[PDF] - XO 8080
[PDF] - XO 10080

OX Patio Door

[PDF] - OX 6080
[PDF] - OX 7080
[PDF] - OX 8080
[PDF] - OX 10080

OXXO Patio Door

[PDF] - OXXO 12080
[PDF] - OXXO 13080
[PDF] - OXXO 16080
[PDF] - OXXO 20080

Shop Drawings - Custom Size

XO Sliding Door

[PDF] - XO Sliding Door
[DWG} - XO Sliding Door

OX Sliding Door

[PDF] - OX Sliding Door
[DWG} - OX Sliding Door

OXXO Sliding Door

[PDF] - OXXO Sliding Door
[DWG} - OXXO Sliding Door

Elevation Drawings

3750 Patio Door Elevation

[PDF] - 3750 Patio Door Elevation
[DWG] - 3750 Patio Door Elevation

Configuration Drawings

3750 Patio Door Configurations

[PDF]- 3750 Patio Door Configurations

Section Views

1" Nail Fin

[PDF] - XO Patio Door
[DWG} - XO Patio Door
[PDF] - OX Patio Door
[DWG] - OX Patio Door
[PDF] - OXXO Patio Door
[DWG} - OXXO Patio Door

1.375" Nail Fin

[PDF] - XO Patio Door
[DWG} - XO Patio Door
[PDF] - OX Patio Door
[DWG] - OX Patio Door
[PDF] - OXXO Patio Door
[DWG} - OXXO Patio Door

Wall Detail Drawings

1" Nail Fin

[PDF] - .75 inch Sleeper Sill
[DWG} - .75 inch Sleeper Sill
[PDF] - 1.5 inch Sleeper Sill
[DWG} - 1.5 inch Sleeper Sill

1.375" Nail Fin

[PDF] - .75 inch Sleeper Sill
[DWG} - .75 inch Sleeper Sill
[PDF] - 1.5 inch Sleeper Sill
[DWG} - 1.5 inch Sleeper Sill

Structural Test Result: LC-PG30 (Light Commercial - Performance Grade 30)
Test Standard: AAMA/WDMA/CSA 101/1.S.2/A440-08
Unit Tested: XO - 2 Panel, 119 1/2" x 95 1/2"

  Tested at Measured Allowed
Air Infiltration - ASTM E283-04 1.57 PSF (25 mph) .10 CFM/ft² 0.30 CFM/ft²
Air Exfiltration - ASTM E283-04 1.57 PSF (25 mph) .10 CFM/ft² 0.30 CFM/ft²
Water Resistance - ASTM E547-00 4.59 psf No Leakage No Leakage
Uniform Load Deflection - ASTM E330-02 30.08 psf (108 mph) 1.246" (+) / 1.222" (-) No Damage
Uniform Load Structural Test - ASTM E330-02 45.11 psf (132 mph) 0.093" (+) / 0.113" (-) .37 inches
Forced Entry Resistance - ASTM F842-04 Test A, B, & C No Entry No Entry

Dual Glazed Thermal Test Results

U-Factor

SHGC

VT

Overall IG Thickness

Insulated glass unit as tested

0.30

0.20

0.46

0.875"

3mm Cardinal 366 / Argon / 3mm Clear

0.30

0.20

0.46

0.875"

4mm Cardinal 366 / Argon / 4mm Clear

0.30

0.20

0.45

0.875"

5mm Cardinal 366 / Argon / 5mm Clear

0.26

0.19

0.45

0.875"

3mm Cardinal 366 / Argon / 3mm Cardinal I89

0.26

0.19

0.44

0.875"

5mm Cardinal 366 / Argon / 5mm Cardinal I89

Triple Glazed Thermal Test Results

U-Factor

SHGC

VT

Overall IG Thickness

Insulated glass unit as tested

0.23

0.18

0.41

1.25"

3mm Cardinal 366 / Argon / 3mm Cardinal i89 / Argon / 3mm Clear

0.22

0.17

0.33

1.25"

3mm Cardinal 366 / Argon / 3mm Clear / Argon / 3mm Cardinal 366
