WinDor's 1550 picture windows are a perfect addition to a room to enjoy a view or allow light in. They can be used alone, or combined with a wide range of our windows systems including single hung, horizontal sliders or casements to offer a complete solution.

All of these features add up to a window that clients love.

Innovative, Durable and Low Maintenance

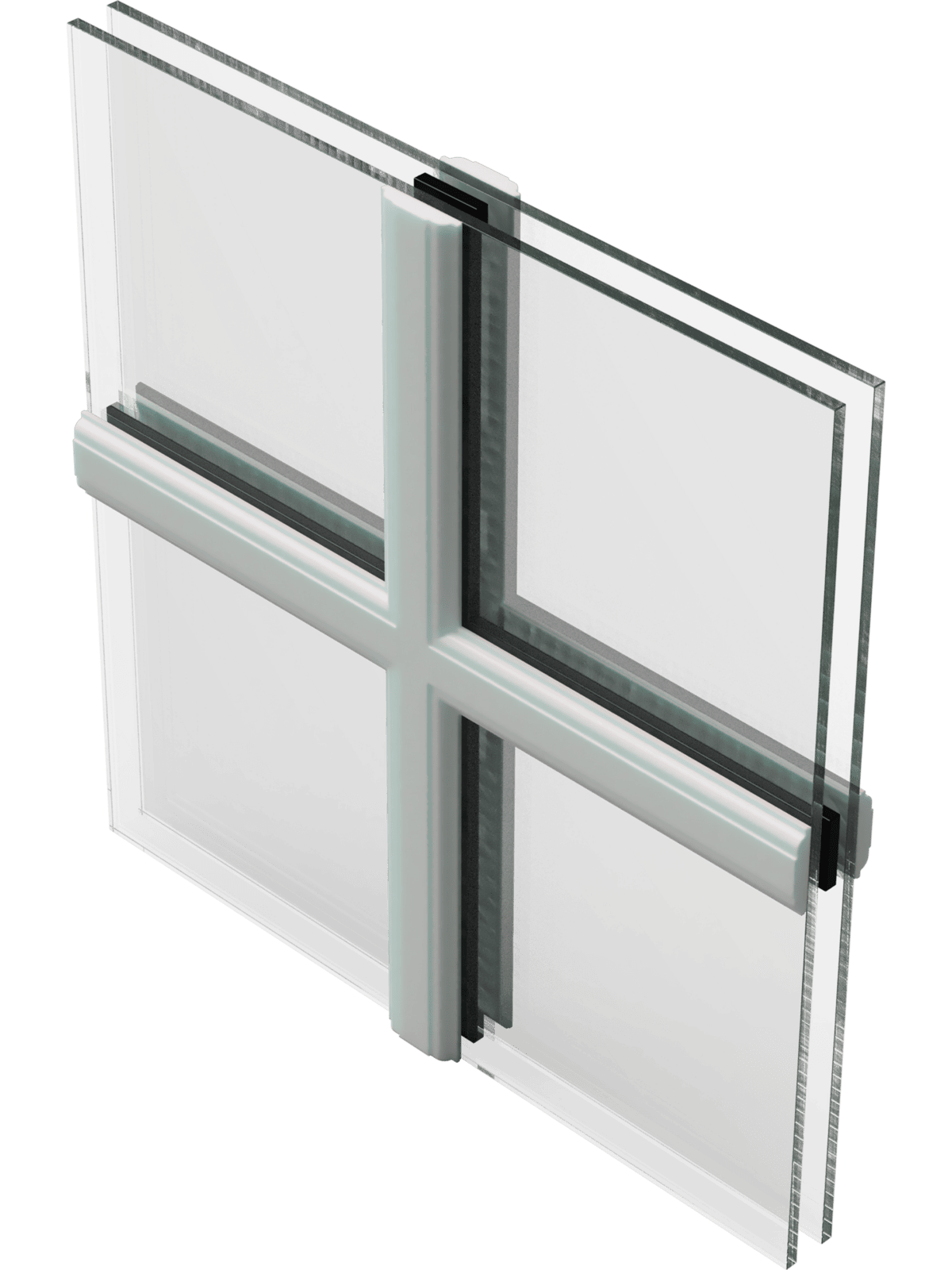

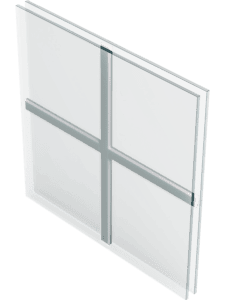

Grid Types

Grid Options

Glass Options

A Variety of Color Options

Popular Choices, Energy Efficient and Low Maintenance

Extruded Colors
White
Beige
Standard Colors
Dk Bronze (Coated)
Semi-Custom Colors
Beige (Coated)
Taupe (Coated)
WinShield® Colors
Jet Black (WinShield®)
[PDF] Download Color Chart

Extruded Colors

Every window and door manufactured by Win-Dor Systems is made from the highest quality 100% virgin vinyl available, extruded in either white or beige.  Colors are consistent throughout the products, hardened to stand up to the harshest elements and will never peel, chip or need paint.

Standard Colors

A variety of popular painted exterior coating options are available.  Each color is bonded onto the vinyl surface and adds an element of heat reflectivity.  All of our painted finishes are scratch and chip resistant, made to withstand the elements and formulated for optimal energy efficiency.

Semi-Custom Colors

Additional exterior colors are available.  The semi-custom color family of colors may require longer production lead-times.  Please consult the factory for additional information.

WinShield® Colors

WinShield® is a specialty laminate made from multiple layers of durable and highly reflective materials. Each layer adds to its strength and heat reflectivity. The laminate is bonded to the vinyl using a specialized process. WinShield’s unique technology performs incredibly well even in extreme environments. It is virtually maintenance-free, much more durable than traditional paints used by others, and provides a consistent color that can be carried across multiple products reducing variations.

Picture Window Technical Documents

[PDF] - 1550 Picture Window Elevation
[DWG] - 1550 Picture Window Elevation

[PDF] - 1550 Picture Window Configurations

1550 Picture Window Horizontal Section View
1550 Picture Window Vertical Section View

1550 Picture Window 1" Nail-fin

[PDF] - 1550 PW
[DWG] - 1550 PW
[PDF] - 1550 PW-PW
[DWG] - 1550 PW-PW
[PDF] - 1550 PW over PW
[DWG] - 1550 PW over PW
[PDF] - 1550 PW PW over PW PW
[DWG] - 1550 PW PW over PW PW

1550 Picture Window Horizontal Section View
1550 Picture Window Vertical Section View

1550 Picture Window with 1 3/8" Nail-Fin

[PDF] - 1550 PW
[DWG] - 1550 PW
[PDF] - 1550 PW PW
[DWG] - 1550 PW PW
[PDF] - 1550 PW over PW
[DWG] - 1550 PW over PW
[PDF] - 1550 PW PW over PW PW
[DWG] - 1550 PW PW over PW PW

1550 Picture Window Horizontal Section View
1550 Picture Window Vertical Section View

1550 Picture Window with Retro Fin

[PDF] - 1550 PW
[DWG] - 1550 PW
[PDF] - 1550 PW PW
[DWG] - 1550 PW PW
[PDF] - 1550 PW over PW
[DWG] - 1550 PW over PW
[PDF] - 1550 PW PW over PW PW
[DWG] - 1550 PW PW over PW PW

Structural Test Result: LC-PG35 (Light Commercial - Performance Grade 35)
Test Standard: AAMA/WDMA/CSA 101/1.S.2/A440-17
Unit Tested: 1550 - 1 Panel, 44" x 60"





Tested at

Measured

Allowed

Air Infiltration - ASTM E283-04

1.6 PSF

.01 CFM/ft2

0.30 CFM/ft2

Air Exfiltration - ASTM E283-04

1.6 PSF

.01 CFM/ft2

0.30 CFM/ft2

Water Resistance - ASTM E547-00 (09)

5.43 PSF

No Leakage

No Leakage

Uniform Load Deflection - ASTM E330-14

35.09 psf (116 mph)

0.031" (+) / 0.003" (-)

No Damage

Uniform Load Structural Test - ASTM E330-14



52.63 psf (143 mph)

0.001" (+) / 0.002" (-)

0.219"

Forced Entry Resistance - ASTM F588-07

Test D

No Entry

No Entry

Dual Glazed

U-Factor

SHGC

VT

Overall IG Thickness

Insulated glass unit

0.26

0.24

0.57

0.875"

3mm Cardinal 366 / Argon / 3mm Clear

0.25

0.24

0.57

0.875"

4mm Cardinal 366 / Argon / 4mm Clear

0.25

0.24

0.56

0.875"

5mm Cardinal 366 / Argon / 5mm Clear

0.21

0.24

0.56

0.875"

3mm Cardinal 366 / Argon / 3mm Cardinal i89

0.21

0.24

0.55

0.875"

5mm Cardinal 366 / Argon / 5mm Cardinal i89

Triple Glazed
U-Factor SHGC VT Overall IG Thickness Insulated glass
0.18 0.22 0.51 1.25" 3mm Cardinal 366 / Argon / 3mm Cardinal i89 / Argon / 3mm Clear
0.17 0.20 0.41 1.25" 3mm Cardinal 366 / Argon / 3mm Clear / Argon / 3mm Cardinal 366
